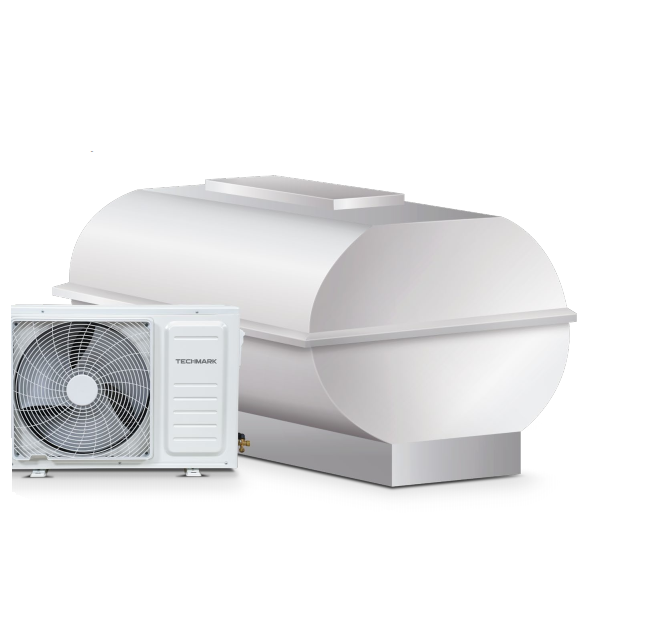

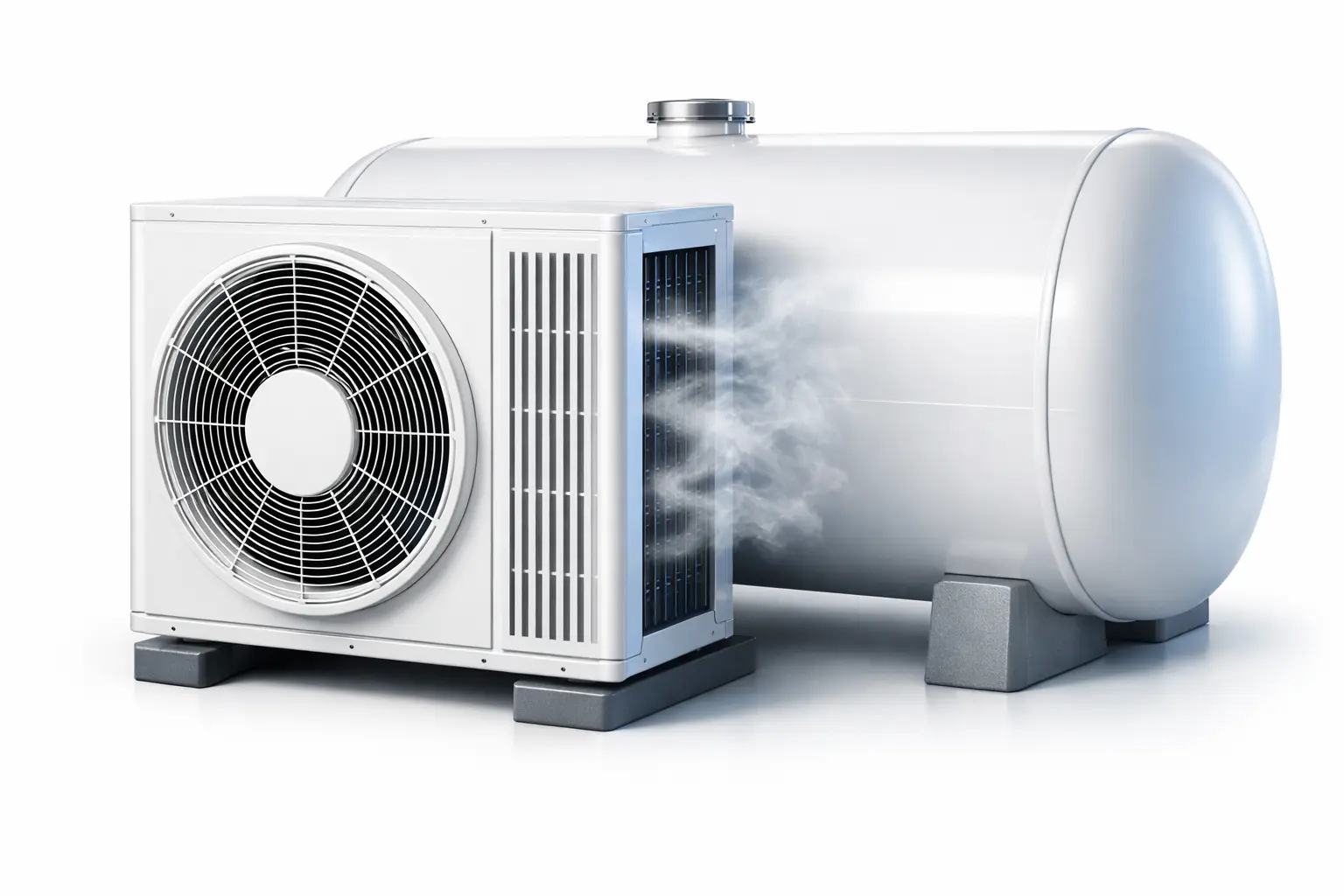

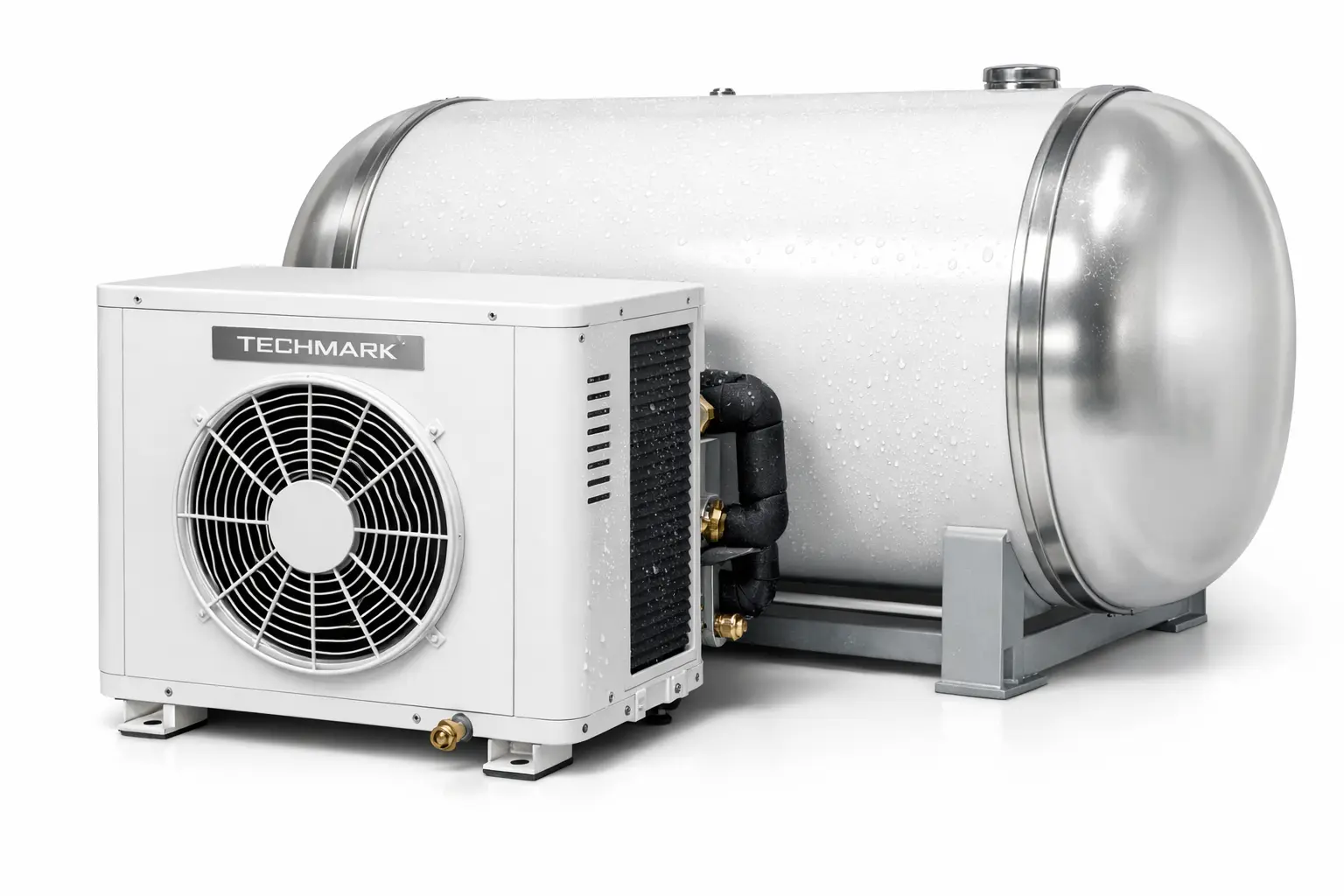

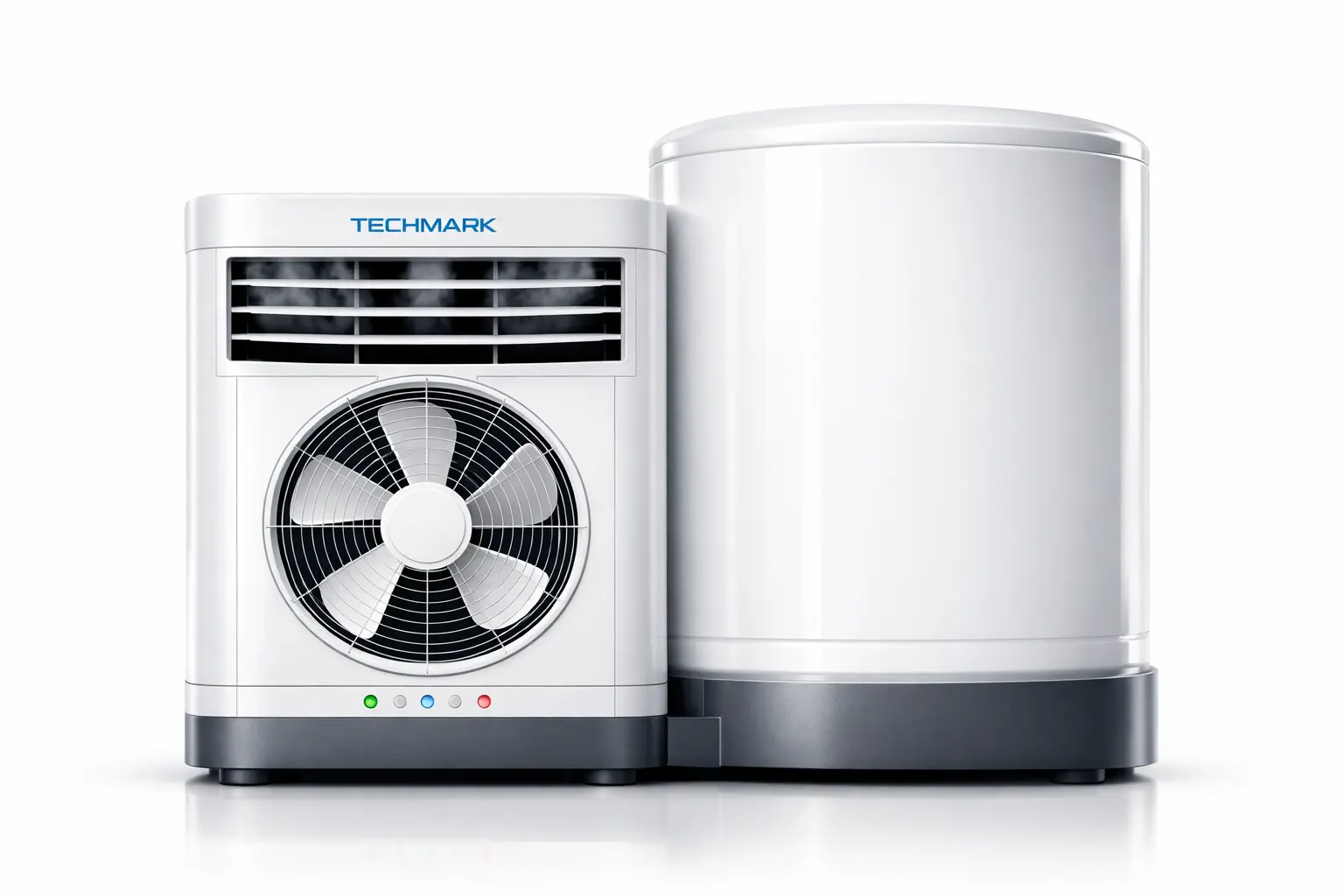

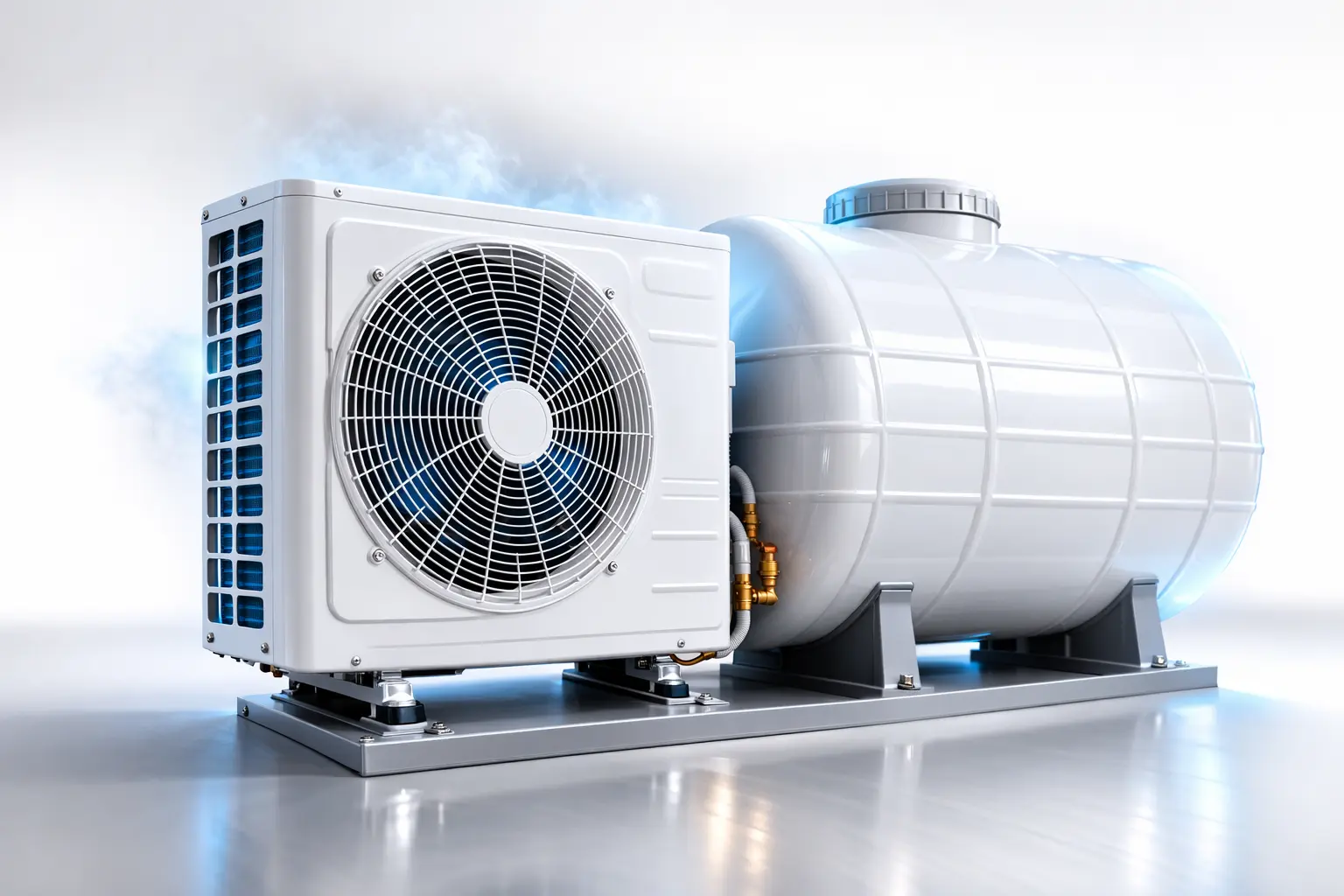

2000L WATER TANK COOLER
Available for water tanks upto 2000L
Easy installation, economical operation & maintenance. Compatible with all types of existing tanks
Cables & tubes - protected & insulated against heat, dust & humidity
Micro processor based control for - Temperature adjustment
Protected with HP/LP switches
Powder coated panel wherever necessary for long lasting outdoor life
Read more specifications...
| Aquachill (Water Tank Cooler) | ||
|---|---|---|
| Capacity | Only Cool | 24K |
| Rated Power Supply | V/Ph/Hz | 220 - 240/1/50 |
| Nominal Operating Condition | ||
|---|---|---|
| Working Ambient Temprature | 24°C to 52°C |
| Performance (Referance Only) | T1 Condition | T3 Condition | |
|---|---|---|---|
| Cooling Capacity | Btu/h | 22,290 | 20,014 |
| Watts | 6,535 | 5,866 | |
| Power Input | Watts | 1840 | 2258 |
| Current | Amps | 8.20 | 10.5 |
| Compressor | |||
|---|---|---|---|
| Type | Rotary | ||
| LRA | Amps | 48 ±10% @ 240V | |
| Refrigrant | R-410A |
| Outdoor Unit Connection | ||
|---|---|---|
| Service Value | mm(Inch) | 9.52(3/8) |
| Outdoor Unit Connection | ||
|---|---|---|
| Diameter | mm(Inch) | 9.52(3/8) |
| Lenght | m(foot) | 12.192(40) |
| Optional Features | ||
|---|---|---|
| HP Switch | Open | 670 ± 20PSI |
| Close | 550 ± 20PSI | |
| LP Switch | Open | 50 ± 7PSI |
| Close | 90 ± 7PSI |
| T3 : Cooling Capacity is based on 84.6°F (29°C) dry bulb,"66.2°F (19°C) wet bulb indoor conditions and 115°F (46°C) dry bulb ambient outdoor temprature at hight speed. |
| Specifications are subjected to change without notice in accordance with our policy of continous research and product development. |
